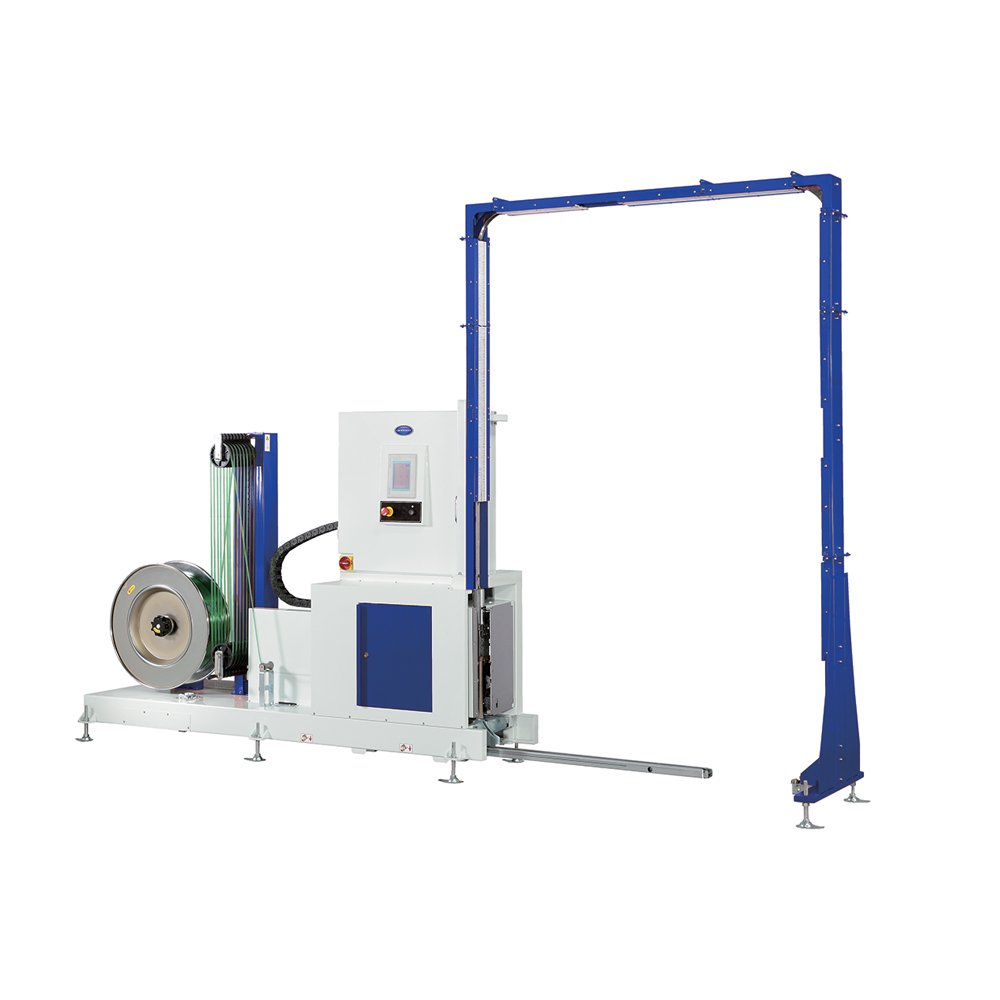

Automatic Vertical Pallet Strapper
€10.00- Rapid and high productivity pallet strapping
- Siemens PLC control and user-friendly touch screen
- Indexing strapping head
- Telescopic lance feeds strap through pallet frame and retracts for easy pallet transfer
- Range of non-standard arch sizes available on request
- Rapid and high productivity pallet strapping
- Can be integrated within a packing line or operated as stand alone unit
- Strap widths 9/12/15.5mm (specify on ordering)
- Internal core diameter 406mm
- Standard arch size (W x H) 2450 x 1400mm
- Strapping tension 1100-3000N (200-1200N available on request)
- Up to 70 double-strapped pallets/hour on automated line
- Power supply 415V 50Hz
- Power consumption 1.35kW
- Nett weight 437kg
- Strap not included

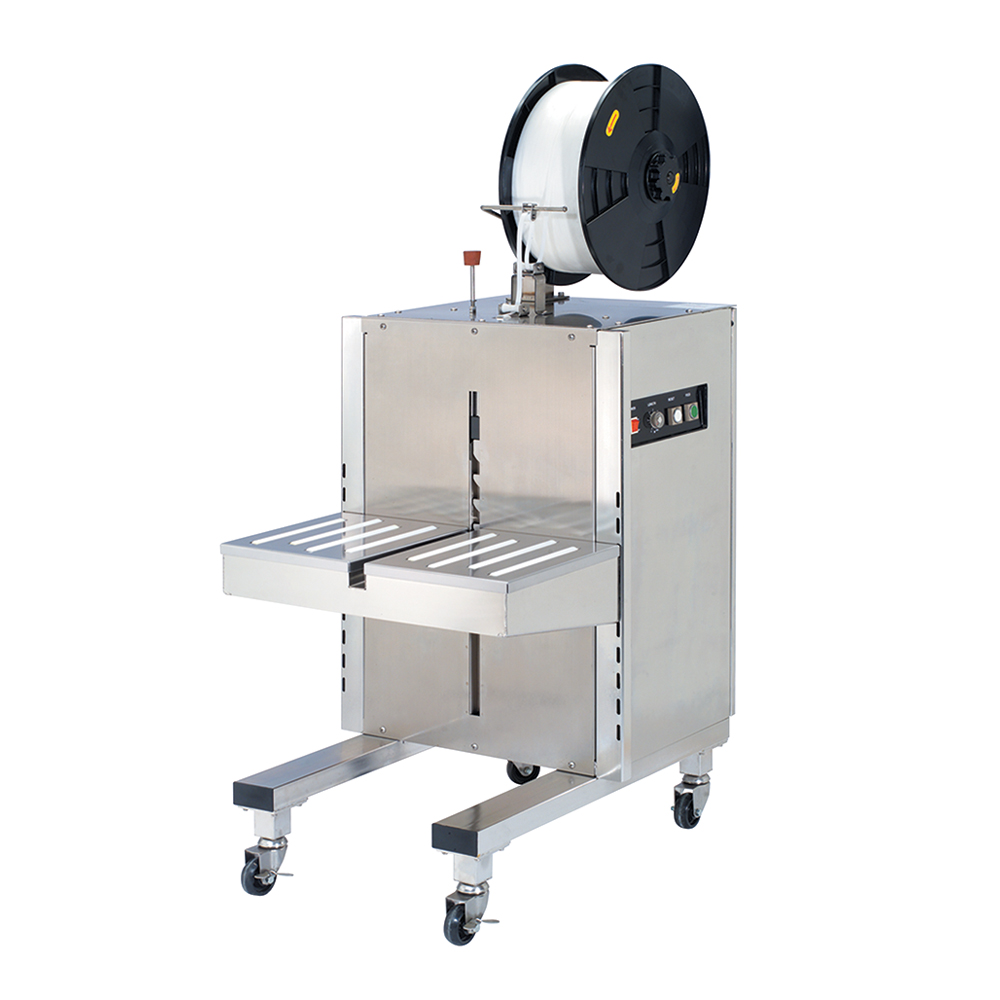

Stainless Semi Automatic Side Strapper
€10.00- Stainless steel cabinet
- Braking swivel castors
- 420-770mm adjustable table height
- Based on the energy-efficient TMS300 platform
- Simple to use and reliable
- Side seal reduces risk of sealing head contamination
- Adjustable table height for more ergonomic use
- Externally mounted strapping coil
- Strap width 6-15.5mm
- Compatible with 200mm or 280mm internal diameter cores
- Maximum strappable package weight 120kg
- Strap tension range 15-45kg (depends on strap used)
- Cycle time 2.5 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 0.3kW
- Dimensions (W x D x H) 675 x 1045 x 1625mm
- Weight 155kg
- Strap not included

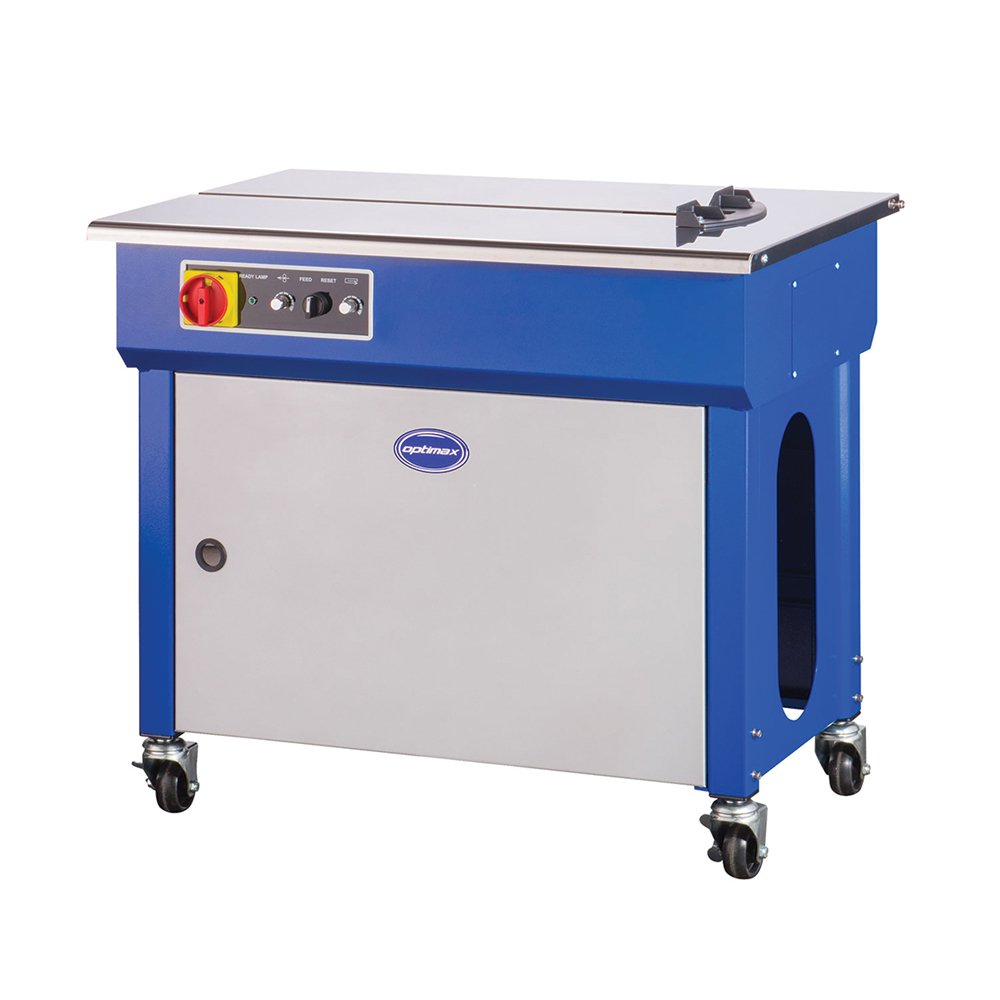

Closed Frame Semi Automatic Table Strapper
€10.00- 780-950mm adjustable table height
- Lockable swivel castors
- External manual strap tension adjustment
- Reliable control head
- Sensor controlled heater blade
- Direct drive mechanism
- Semi enclosed cabinet
- Simple to use and reliable
- Highly mobile and versatile
- Adjustable table height for more ergonomic use
- Strapping coil and sealing head protected from damage
- Uses 12mm polypropylene strap and can be adjusted for 9mm strap
- Compatible with 200mm or 280mm internal diameter cores
- Maximum strappable package weight 120kg
- Strap tension range 15-45kg (depends on strap used)
- Cycle time 2.5 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 0.3kW
- Dimensions (W x D x H) 850 x 560 x 780-950mm
- Weight 95kg

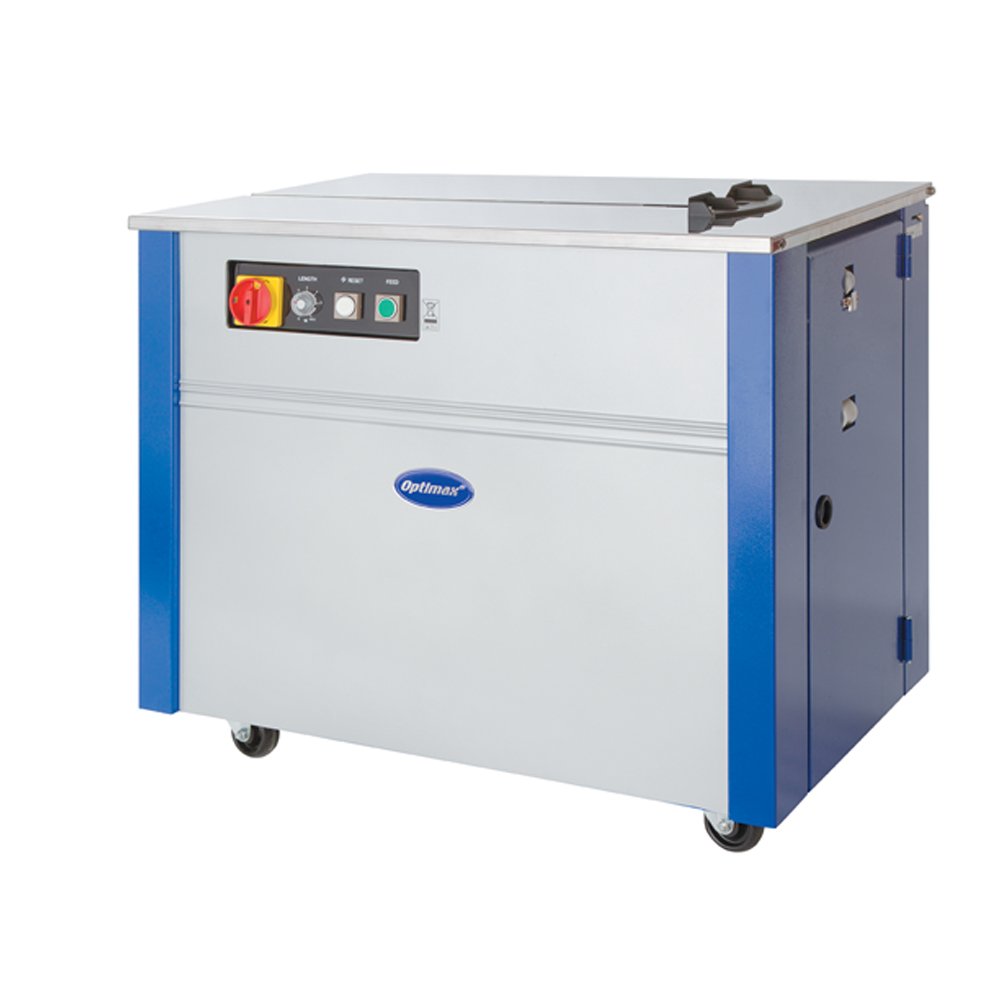

Semi Auto Strapping Machine
€10.00- Fixed/swivel castors
- External manual strap tension adjustment
- Reliable control head
- Fully enclosed cabinet
- Simple to use, highly mobile and versatile
- Strapping coil & sealing head protected from damage and contamination
- Uses 12mm polypropylene strap & can be adjusted for 9mm strap
- Compatible with 200mm or 280mm internal diameter cores
- Power supply 230V 50Hz
- Power consumption 0.3kW
- Dimensions (W x D x H) 920 x 595 x 785mm
- Weight 104kg

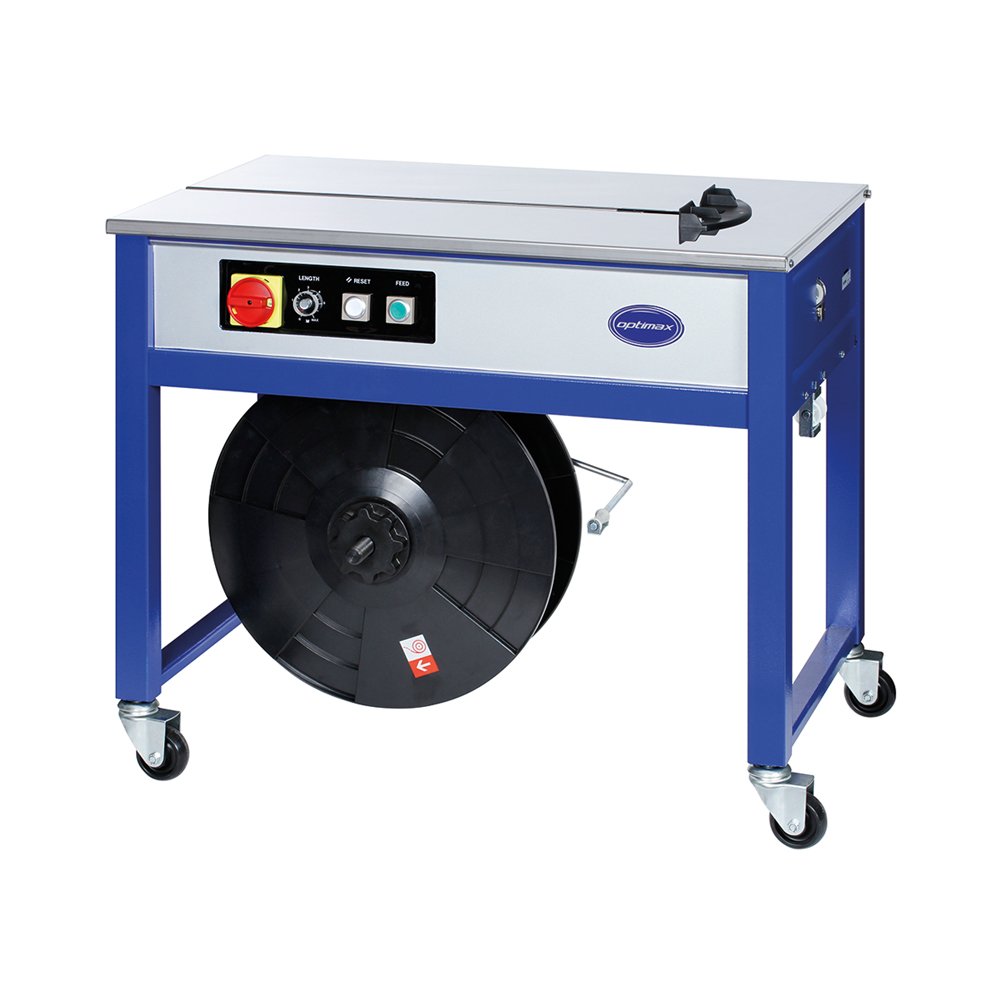

Open Frame Semi Automatic Table Strapper
€10.00- 730-930mm adjustable table height
- Braking swivel castors
- External manual strap tension adjustment
- Reliable control head
- Simple to use and reliable
- Highly mobile and versatile
- Adjustable table height for more ergonomic use
- Easily accessible externally mounted strap coil holde

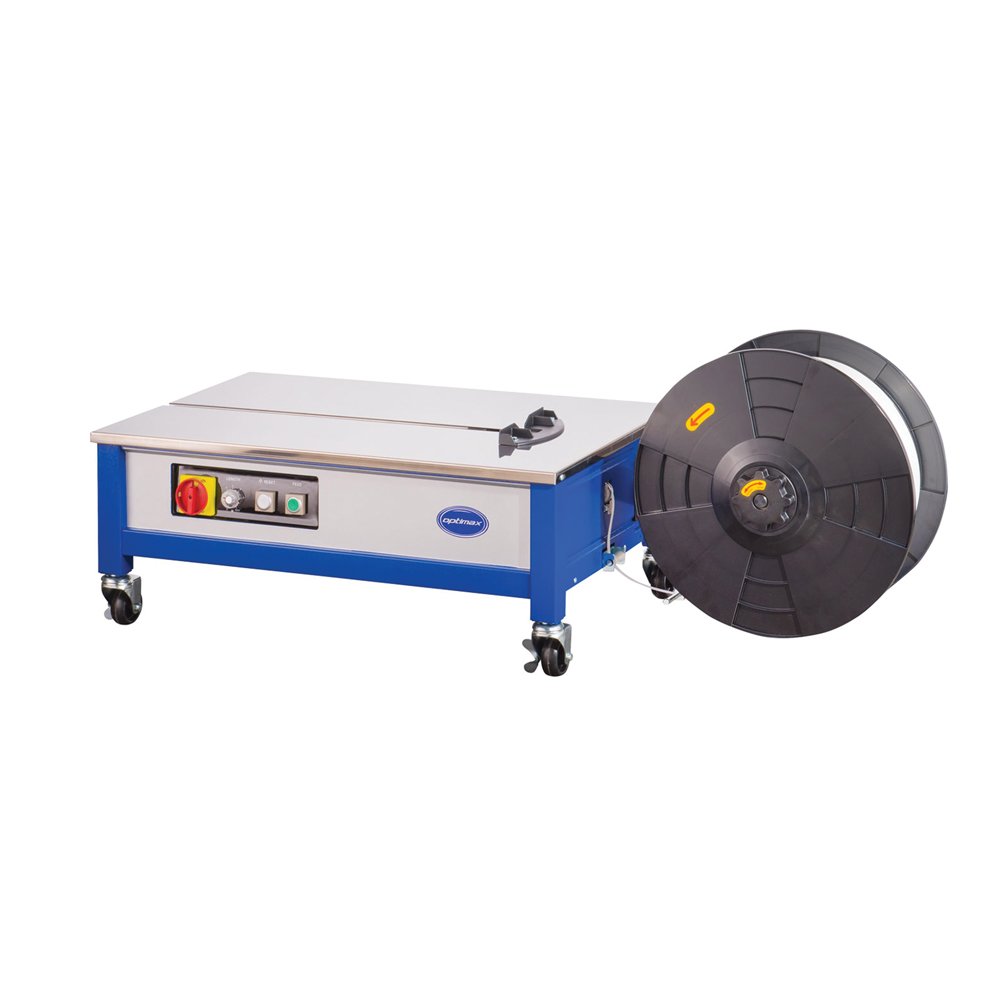

Semi Automatic Low Table Strapper
€10.00- Braking swivel castors
- 355mm table height
- Based on the energy-efficient TMS300 platform
- Simple to use and reliable
- Externally mounted strapping coil
- Strap width 9-16mm
- Compatible with 200mm or 280mm internal diameter cores
- Maximum strappable package weight 120kg
- Strap tension range 15-45kg (depends on strap used)
- Cycle time 2.5 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 0.25kW
- Dimensions (W x D x H) 1476 x 582 x 355mm
- Weight 100kg

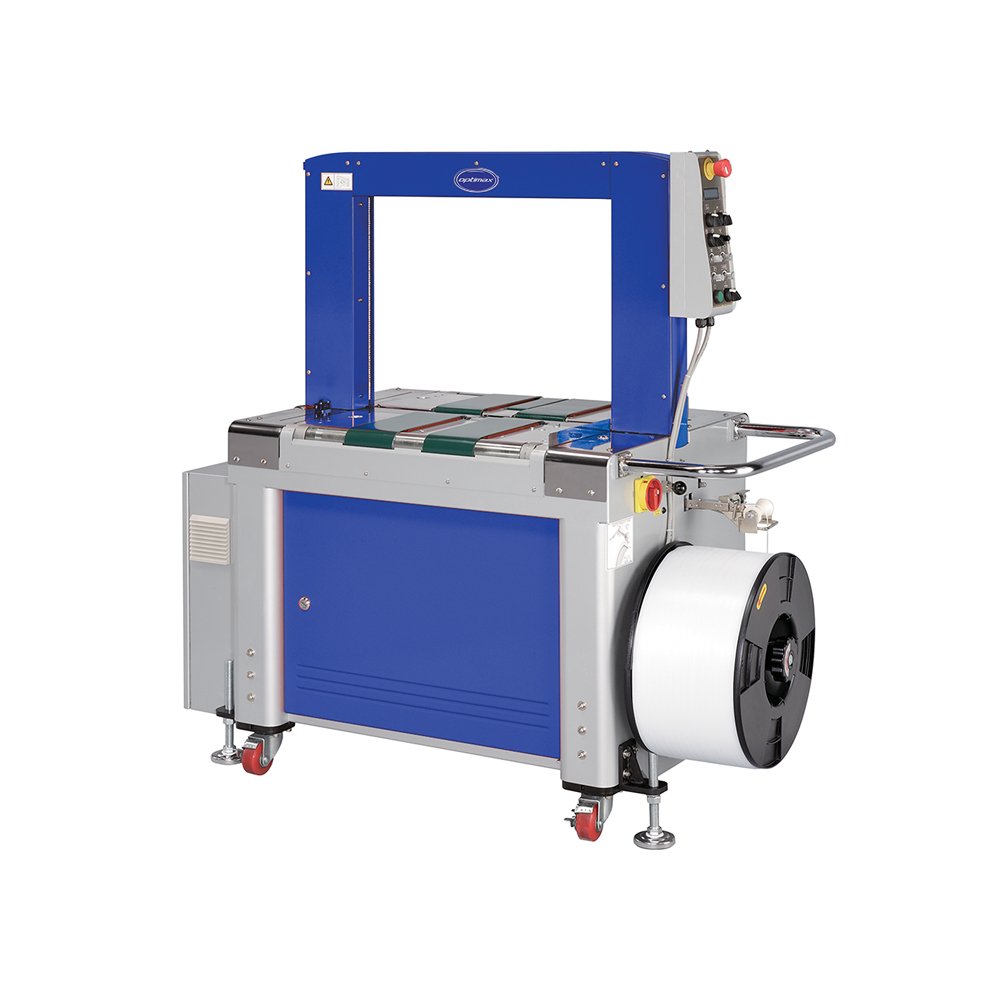

Robopac Robotape 50 ME LH
€10.00- German brushless motor technology
- Electronic strap tension control
- Auto loop ejector short feed sensor and auto strap feed
- 820-920mm adjustable table height
- One of the most advanced strapping machines in its class
- Belt drive ideal for lighter and smaller consignments
- Integrates with packing line or operates as stand-alone unit
- Strap width 9mm
- Maximum strap tension 32kg
- Maximum cycle speed: 65 per minute
- Arch size (W x H) 650 x 500mm
- Power supply 230V 50Hz
- Dimensions (W x D x H) 1400 x 650 x 1497mm
- Nett weight 225kg
- Strap not included
Automatic Arch Strapper with Belt Driven Table – 12mm
€10.00- German brushless motor technology
- Electronic strap tension control
- Auto loop ejector short feed sensor and auto strap feed
- 820-920mm adjustable table height
- One of the most advanced strapping machines in its class
- Belt drive ideal for lighter and smaller consignments
- Integrates with packing line or operates as stand-alone unit
- Strap width 9mm
- Maximum strap tension 32kg
- Maximum cycle speed: 65 per minute
- Arch size (W x H) 650 x 500mm
- Power supply 230V 50Hz
- Dimensions (W x D x H) 1400 x 650 x 1497mm
- Nett weight 225kg
- Strap not included

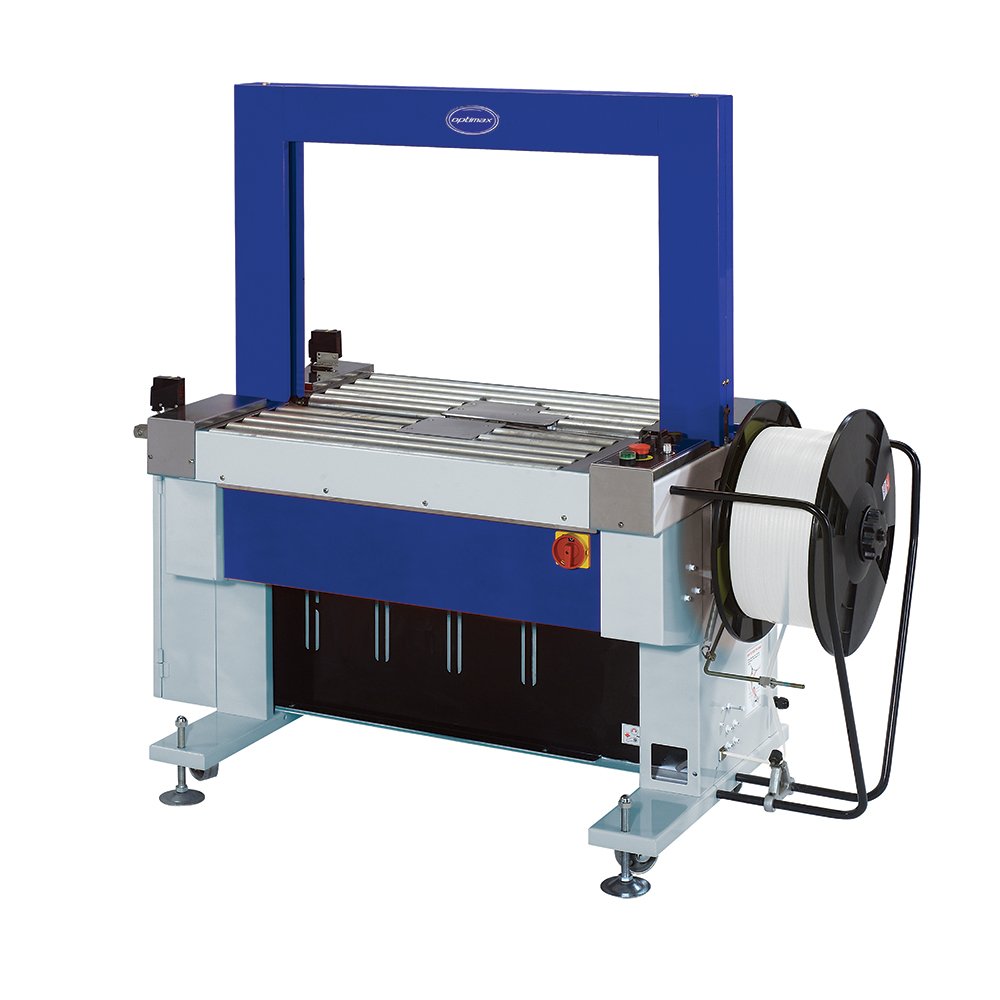

Automatic Arch Strapper with Roller DrivenTable – 12mm
€10.00- Electronic strap tension control
- Auto loop ejector short feed sensor and auto strap feed
- Roller driven table ideal for heavier consignments
- Integrates with packing line or operates as stand-alone unit
- Strap width 12mm
- Maximum strap tension 70kg (depends on strap)
- Maximum cycle speed: 29 per minute
- Arch size (W x H) 850 x 600mm
- Power supply 230V 50Hz
- Air supply (for pre-compressor bar models) 10.0l/cycle @ 6 bar
- Dimensions (W x D x H) 1580 x 706 x 1540mm
- Nett weight 330kg
- Strap not included
Automatic Strapper with 550 x 400mm Arch – 5mm
€10.00- Waist height coil change
- Automatic strap feed
- Auto loop ejector
- Adjustable table height
- High level control panel
- Integral front treadle bar switch
- Ergonomic and user-friendly design
- Strap width 5mm
- Arch size (W x H) 550 x 400mm
- Maximum package weight 70kg
- Strap tension range 1-35kg (depends on strap used)
- Maximum cycle rate 65 per minute
- Power supply 230V 50Hz
- Power consumption 0.5kW
- Dimensions (W x D x H) 840 x 650 x 1305mm
- Nett weight 157kg
- Gross weight 183kg

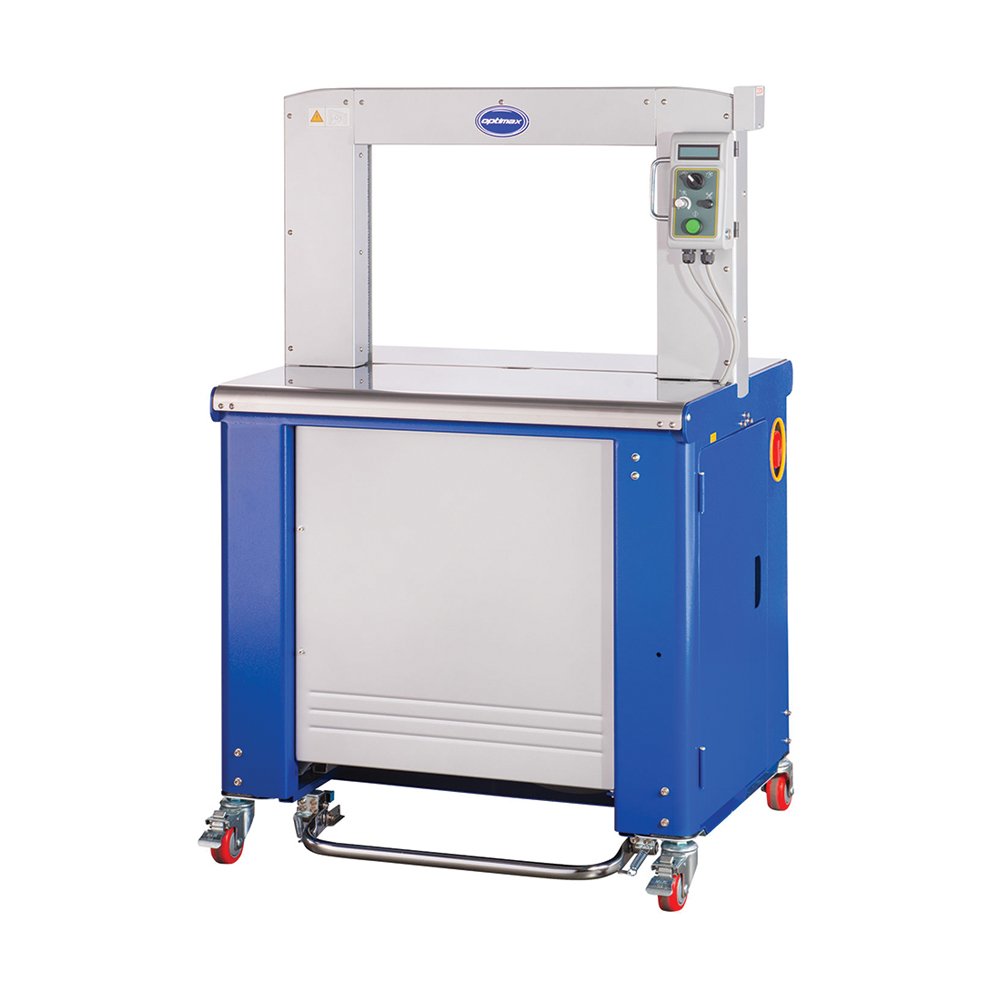

Automatic Strapper with 550 x 400mm Arch – 12mm
€10.00- Waist height coil change
- Automatic strap feed
- Auto loop ejector
- Adjustable table height
- High level control panel
- Integral front treadle bar switch
- Ergonomic and user-friendly design
- Strap width 12mm
- Arch size (W x H) 550 x 400mm
- Maximum package weight 70kg
- Strap tension range 1-35kg (depends on strap used)
- Maximum cycle rate 65 per minute
- Power supply 230V 50Hz
- Power consumption 0.5kW
- Dimensions (W x D x H) 840 x 650 x 1305mm
- Nett weight 157kg
- Gross weight 183kg

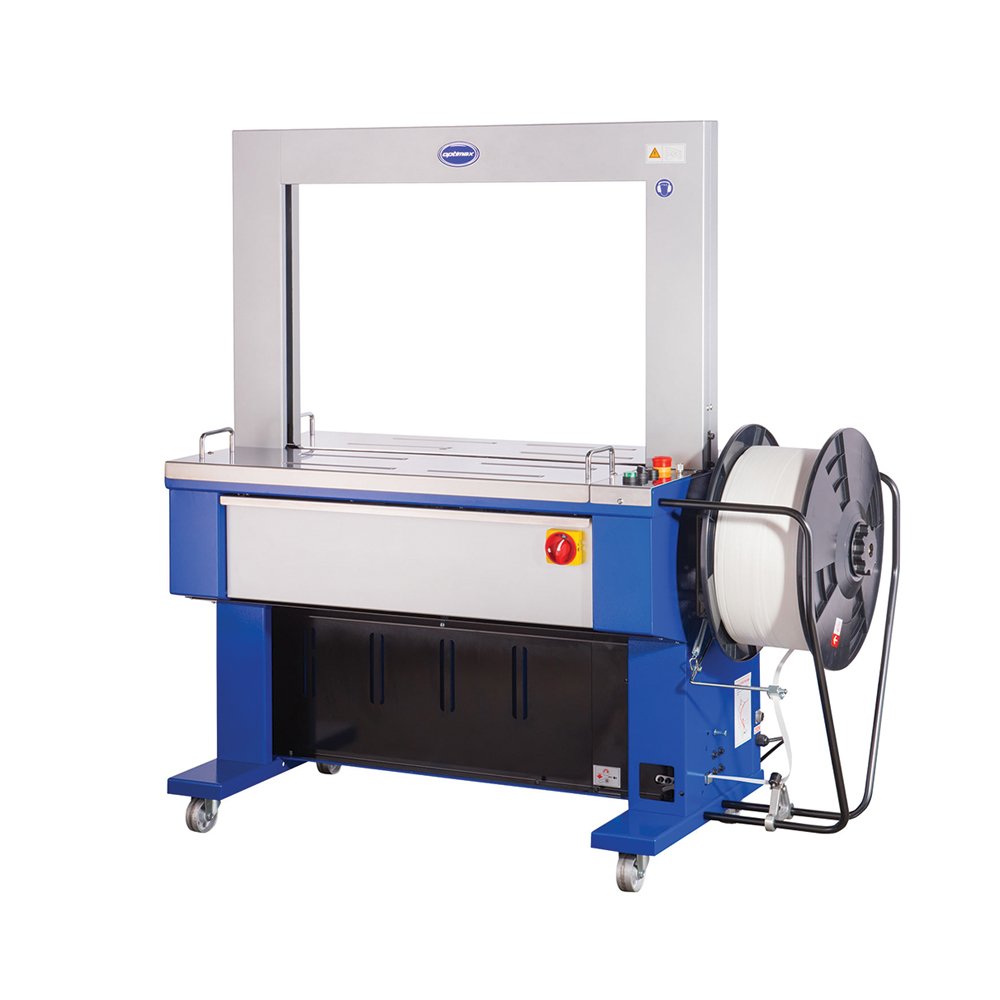

Automatic Arch Strapper – 9mm
€10.00- Automatic strap feed
- Short feed sensor and auto re-feed
- Electronic tension control
- Auto loop ejector
- Externally mounted coil
- One of the most advanced strapping machines in its class
- Fast tension adjustment
- Minimal downtime and easy coil change
- Strap width 9mm
- Arch size (W x H) 850 x 600mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.6 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1430 x 620 x 1540mm
- Nett weight 220kg
- Gross weight 263kg
- Strap not included

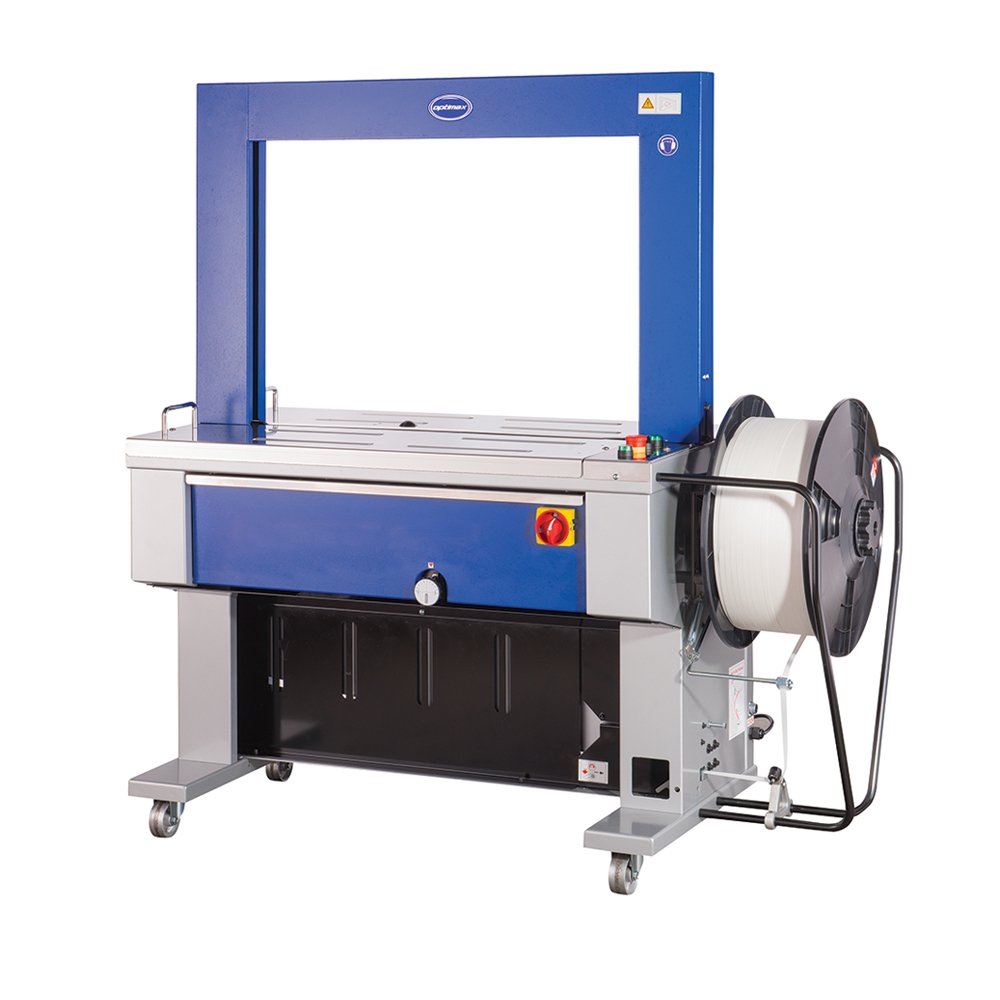

Automatic Strapper with 850 x 600mm Arch – 9mm
€10.00- Automatic strap feed
- Short feed sensor
- Auto loop ejector
- Externally mounted coil
- Entry level arch strapper with excellent build quality
- Suitable for high volume strapping
- Minimal downtime and easy coil change
- Strap width 9mm
- Arch size (W x H) 850 x 600mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.2 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1430 x 620 x 1540mm
- Nett weight 220kg
- Gross weight 263kg
Automatic Strapper with 1050 x 800mm Arch – 12mm
€10.00- Automatic strap feed
- Short feed sensor
- Auto loop ejector
- Externally mounted coil
- Entry level arch strapper with excellent build quality
- Suitable for high volume strapping
- Minimal downtime and easy coil change
- Strap width 12mm
- Arch size (W x H) 1050 x 800mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.2 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1630 x 620 x 1740mm
- Nett weight 230kg
- Gross weight 280kg
Automatic Strapper with 850 x 600mm Arch – 12mm
€10.00- Automatic strap feed
- Short feed sensor
- Auto loop ejector
- Externally mounted coil
- Entry level arch strapper with excellent build quality
- Suitable for high volume strapping
- Minimal downtime and easy coil change
- Strap width 12mm
- Arch size (W x H) 850 x 600mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.2 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1430 x 620 x 1540mm
- Nett weight 220kg
- Gross weight 263kg

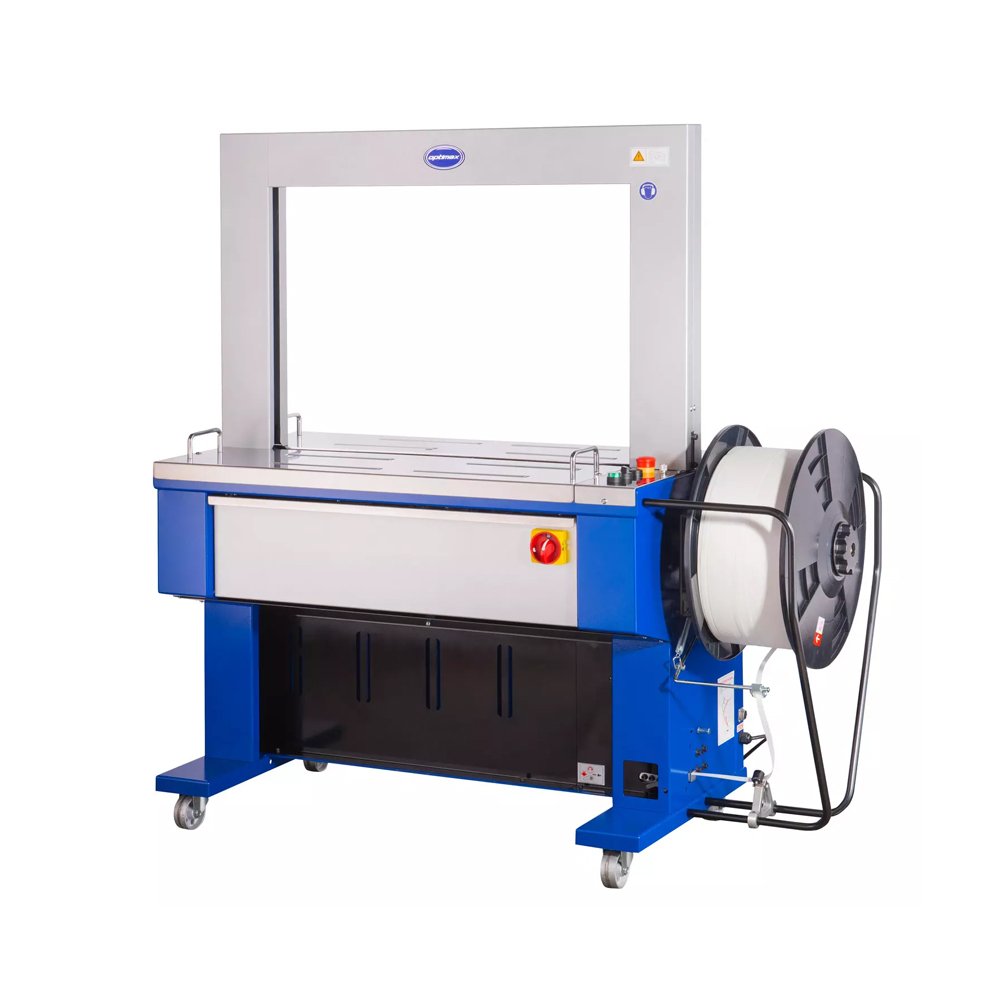

AFS 1050 x 800mm Arch 12mm Strapper
€10.00- Automatic strap feed
- Short feed sensor and auto re-feed
- Electronic tension control
- Auto loop ejector
- Externally mounted coil
- One of the most advanced strapping machines in its class
- Fast tension adjustment
- Minimal downtime and easy coil change
- Strap width 12mm
- Arch size (W x H) 1050 x 800mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.6 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1630 x 620 x 1740mm
- Nett weight 230kg
- Gross weight 280kg
- Strap not included
AFS 850 x 600mm Arch 12mm Strapper
€10.00- Automatic strap feed
- Short feed sensor and auto re-feed
- Electronic tension control
- Auto loop ejector
- Externally mounted coil
- One of the most advanced strapping machines in its class
- Fast tension adjustment
- Minimal downtime and easy coil change
- Strap width 12mm
- Arch size (W x H) 850 x 600mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.6 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1430 x 620 x 1540mm
- Weight 263kg
- Strap not included

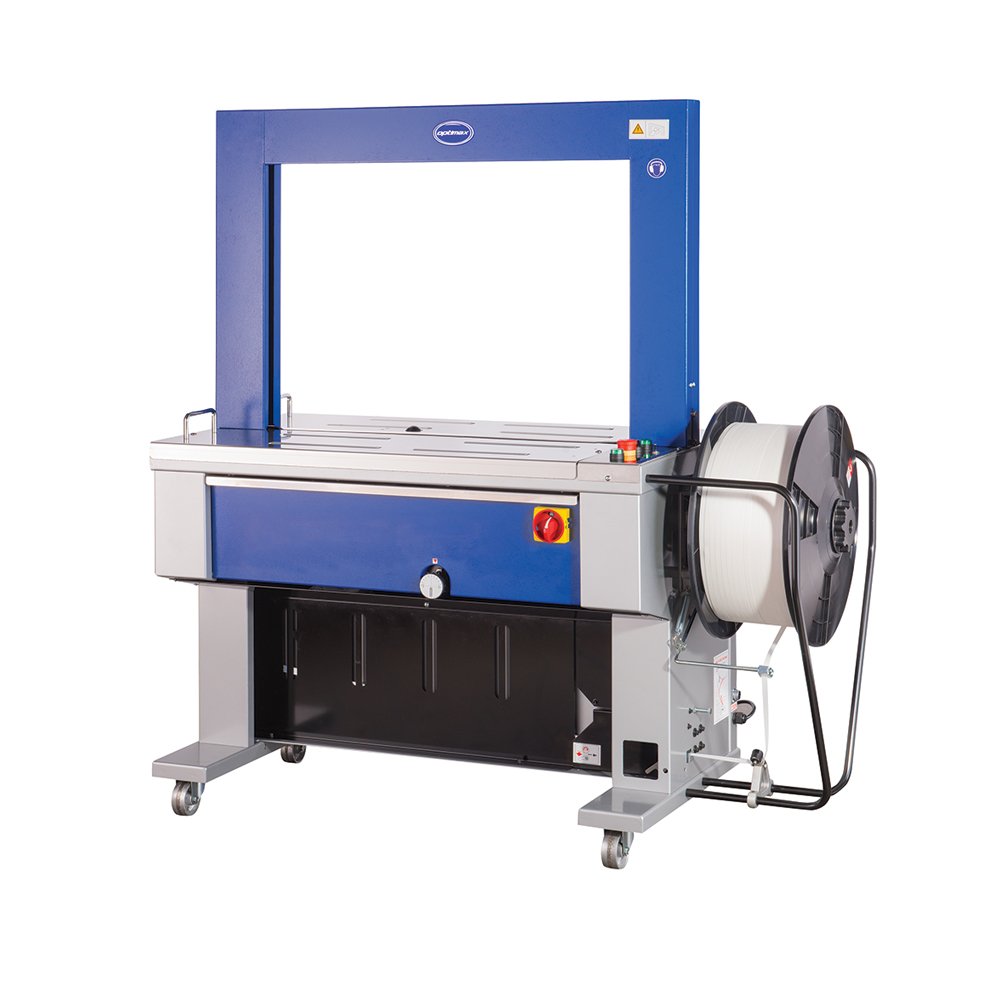

Loan Tool- Automatic Strapping Machine
€10.00- Automatic strap feed
- Short feed sensor
- Auto loop ejector
- Externally mounted coil
- Entry level arch strapper with excellent build quality
- Suitable for high volume strapping
- Minimal downtime and easy coil change
- Strap width 12mm
- Arch size (W x H) 1050 x 800mm
- Strap tension range 10-70kg (depends on strap used)
- Cycle time 2.2 seconds @ 50Hz
- Power supply 230V 50Hz
- Power consumption 1.2kW
- Dimensions (W x D x H) 1630 x 620 x 1740mm
- Nett weight 230kg
- Gross weight 280kg
